Application:

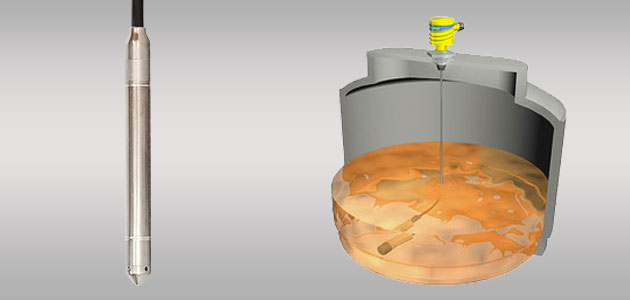

The general purpose LD34 small-bore submersible pressure level transmitter provides continuous level measurement up to 100' (30.4m) of water column with a 4-20 mA signal output. Select the LD34 liquid level sensor for monitoring of relatively clean water. Application examples include ballast tanks, ground water, surface water, dewatering, down hole and remediation.
Features:
Welded 316 SS body and 316 SS nose cap provide years of trouble free service
Tapered body top prevents damage or snaring when removing from installation
Incorporates lighting and surge protection
Provides precise output readings with its ±0.25% of full scale accuracy
Specifications:
Range: -SX01: 0 to 5 psi (0.34 bar),
0 to 11.55' (0 to 3.5m) wc
-SX11: 0 to 6.5 psi (0.45 bar),
0 to 15' (0 to 4.6m) wc
-SX21: 0 to 8.6 psi (0.60 bar),
0 to 20' (0 to 6.1m) wc
-SX31: 0 to 13 psi (0.90 bar),
0 to 30' (0 to 9.1m) wc
-SX41: 0 to 21.6 psi (1.49 bar),
0 to 50' (0 to 15.2m) wc
-SX51: 0 to 43.3 psi (2.99 bar),
0 to 100' (0 to 30.5m) wc
Service: Compatible liquids
Accuracy: ± 0.25% of full scale
Configuration: None, fixed span
Supply voltage: 10 to 33 VDC
Loop resist: 1000 Ohms @ 30 VDC
Signal output: 4-20 mA, two-wire
Process temp.: F: -4° to 176°
C: -20° to 80°
Temp. comp.: F: 0° to 158°
C: -18° to 70°
Thermal effect: ±0.45% FS TEB
Proof pressure: 2 x full scale
Response time: <50ms
Body weight: 0.235 lb (0.107 kg)
Cable weight: 0.037lb (0.0009 kg) per foot
Body and nose: 316 SS
Seals: Fluroelastomer
Seals: Fluroelastomer
Trans. thread: ½" NPT
Cable type: 2-conductor, shielded with vent tube
Cable length: -S101 & S111: 40' (12.2m)
-S121 & S131: 60' (18.3m)
Cable material: Polyurethane
