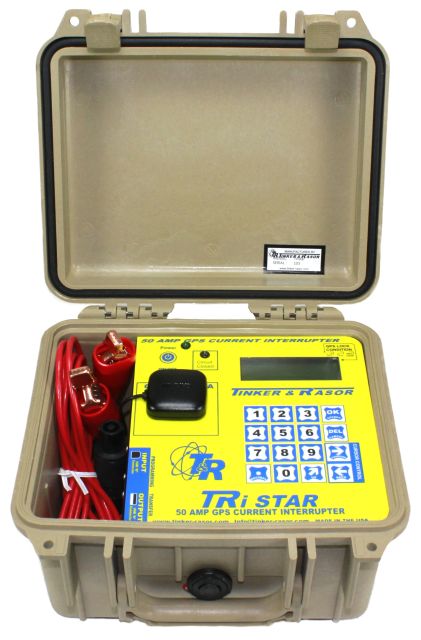

Tinker & Rasor – 50 AMP GPS Current Interrupter (Model: TriStar)

Features:

• 50 AMP @120 volts (6,000 Watt Max).
• GPS Timing
• Cycles between 000.005's and 999.999s
• 110v-240v Auto sensing AC power supply
• MIL-SPEC locking case
• Internal cable storage
• Removable magnetic mount GPS antenna
• Manual Sync Feature
• Transfer program information to multiple units
• All connections made outside of case
• Keypad operation with large LCD screen
• Holds 10 programs in memory
• Non polarity connections

Instrument Includes

• Model: TriStar  GPS Current Interrupter
• Cable, 6’ length with clamps
• 15' Extendable GPS Antenna
• Synchronization / Data cable (USB A/B) (1)
• Power cable, AC (120v/240v) (1)
• Instructions Manual
• Warranty Card

The Latest in Current Interrupter Technology

All Tinker & Rasor Current Interrupters come complete in one unit with all necessary accessories included, and storage for cables inside the case. Unlike with other manufacturers offerings, there is nothing else to buy or needed to interrupt a rectifier.

Specifications:

• 50 amps max; A/C or D/C
• 120 Colt max; A/C or D/C
• Powered from 115v or 230v (50/50 cycle) A/C

Environment:

Display: OºC to 50ºC (32ºF to 122ºF)

Dimensions:

5.75" X 12.25" x 10" 5 LBS

146mm X 311mm X 254mm 2.27kg

Shipping Dimensions:

14" X 12" X 6" 6LBS

355mm X 304mm x 15.24mm 2.72kg
