AOIP-Micro-ohmmeters Applications (Model: OM10/16/21/22)

0
322

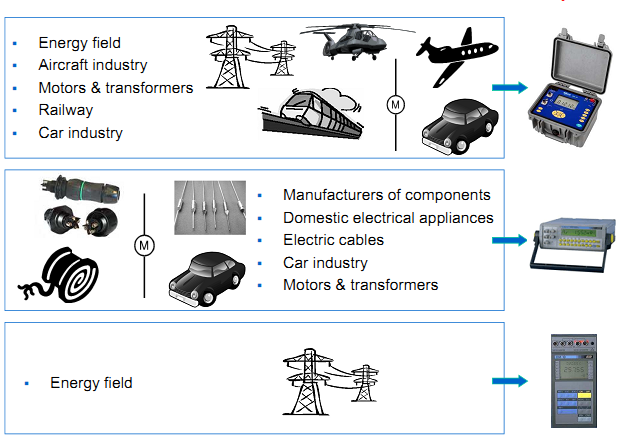

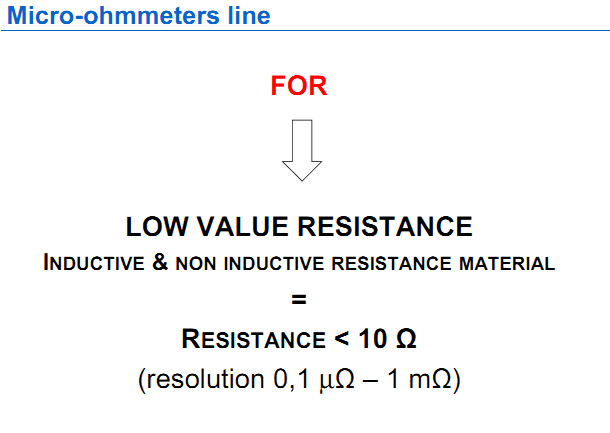

AOIP Micro-Ohmmeter is suitable for everyone

  •  Energy field
  •  Aircraft industry
  •  Motors & transformers
  •  Railway
  •  Car industry
  •  Manufacturers of components
  •  Domestic electrical appliances
  •  Electric cables
  •  Car industry
  •  Motors & transformers

AOIP Micro-Ohmmeters are applying in Earth bonding and Metallization tests

  • Customer: AIRBUS aircraft part production suppliers
  • Goal: riveting door test / verify earth bonding
  • Equipment: OM16
  • Application: earth bonding and metallization.
  1. Measure under 10A with high resolution 0,1µohm.
  2. Small diameter kelvin test probes.
  • Software is used in order to proceed to test onsite , save values and download when back to the office.
  • Reproducibility: All parts of an aircraft, from flight commands to the undercarriage must be tested in earth bonding and continuity.
  • All aircraft sub manufacturers must follow the rules

Customer: AIRBUS aircraft part production suppliers Goal: riveting door test / verify earth bonding Equipment: OM16 Application: earth bonding and metallization. Measure under 10A with high resolution 0,1µohm. Small diameter kelvin test probes. Software is used in order to proceed to test onsite , save values and download when back to the office. Reproducibility: All parts of an aircraft, from flight commands to the undercarriage must be tested in earth bonding and continuity. All aircraft sub manufacturers must follow the rules

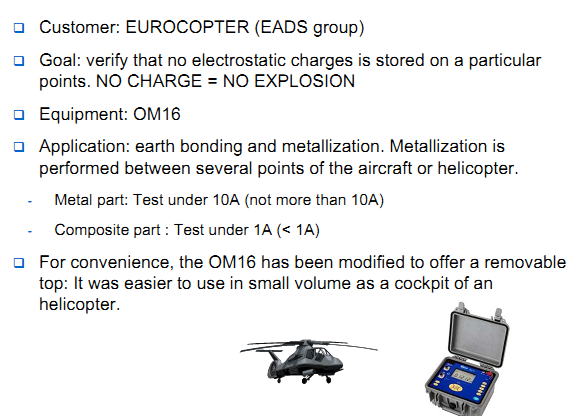

  • Customer: EUROCOPTER (EADS group)
  • Goal: verify that no electrostatic charges is stored on a particular points. NO CHARGE = NO EXPLOSION
  • Equipment: OM16
  • Application: earth bonding and metallization. Metallization is performed between several points of the aircraft or helicopter.
  1. Metal part: Test under 10A (not more than 10A)
  2. Composite part : Test under 1A (< 1A)
  • For convenience, the OM16 has been modified to offer a removable top: It was easier to use in small volume as a cockpit of an helicopter.

 Customer: AIRBUS aircraft part production suppliers Goal: riveting door test / verify earth bonding Equipment: OM16 Application: earth bonding and metallization. Measure under 10A with high resolution 0,1µohm. Small diameter kelvin test probes. Software is used in order to proceed to test onsite , save values and download when back to the office. Reproducibility: All parts of an aircraft, from flight commands to the undercarriage must be tested in earth bonding and continuity. All aircraft sub manufacturers must follow the rules

Aoip Micro-Ohmmeters are applying in Carbon brush control

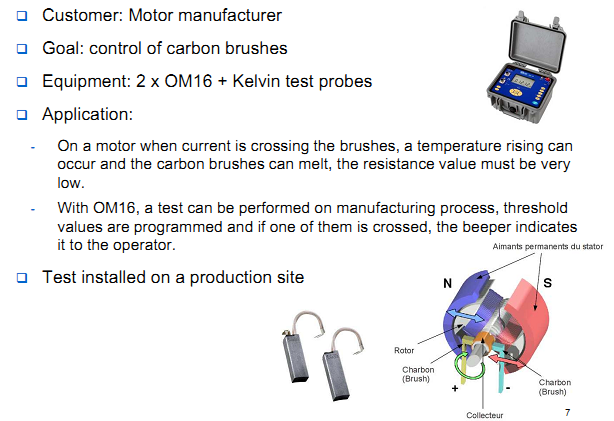

  • Customer: Motor manufacturer
  • Goal: control of carbon brushes
  • Equipment: 2 x OM16 + Kelvin test probes
  • Application:
  1. On a motor when current is crossing the brushes, a temperature rising can occur and the carbon brushes can melt, the resistance value must be very low.
  2. With OM16, a test can be performed on manufacturing process, threshold values are programmed and if one of them is crossed, the beeper indicates it to the operator.
  • Test installed on a production site

Customer: Motor manufacturer Goal: control of carbon brushes Equipment: 2 x OM16 + Kelvin test probes Application: On a motor when current is crossing the brushes, a temperature rising can occur and the carbon brushes can melt, the resistance value must be very  low.  With OM16, a test can be performed on manufacturing process, threshold values are programmed and if one of them is crossed, the beeper indicates  it to the operator. Test installed on a production site

AOIP Micro-Ohmmeters are applying in Welding lead control

  • Customer: PSA, Renault
  • Goal: cable test between power supply and the welding clamp of robot / preventive maintenance
  • Equipment: OM16
  • Application:
  1. The resistance measurement allows to determine the state of wear of cable. In this way it is possible to replace only the cable damaged.

Customer: PSA, Renault Goal: cable test between power supply and the welding clamp of robot / preventive maintenance Equipment: OM16 Application: The resistance measurement allows to determine the state of wear of cable. In this way it is possible to replace only the cable damaged.

AOIP Micro-Ohmmeters are applying in Coil test

  • Customer: ITT Automotive
  • Goal: coil test of solenoid valve
  • Equipment: OM16
  • Application:
  1. The value of coil resistance must be located between two values. Two thresholds are setup, on the production line when test is performed if the operator hears a beep, the product is  rejected.

 Customer: ITT Automotive Goal: coil test of solenoid valve Equipment: OM16 Application: The value of coil resistance must be located between two values. Two thresholds are setup, on the production line when test is performed if the operator hears a beep, the product is rejected.

AOIP Micro-Ohmmeters are applying in Quality test

  • Customer: LEGRAND
  • Goal: circuit breaker quality test
  • Equipment: OM21
  • Application:
  1. Check whether the resistance of each pole of the circuit breaker is in the specified values.
  • Test in end of production line

Customer: LEGRAND Goal: circuit breaker quality test Equipment: OM21 Application: Check whether the resistance of each pole of the circuit breaker is in the  specified values. Test in end of production line

AOIP Micro-Ohmmeters are applying in Length cable test

  • Customer: NEXANS
  • Goal: verify the resistance of cable coil
  • Equipment: OM21
  • Application:
  1. Determine the real length of cable
  • Before the shipment
Calculation:
L = Rm / RL
Rm= measured resistance
RL= linear resistance
The linear resistance is
knew by manufacturer.
Customer: NEXANS Goal: verify the resistance of cable coil Equipment: OM21 Application: Determine the real length of cable Before the shipment Calculation: L = Rm / RL Rm= measured resistance RL= linear resistance The linear resistance is knew by manufacturer.

AOIP Micro-Ohmmeters are applying in Maintenance
  • Customer: RTE (Network Electricity Transportation France)
  • Goal: Bonding / Earthing in substations
  • Equipment: OM10 and OM16
  • Application:
  1. In substations, bonding and earthing connections must be regularly measured to ensure safety, i.e. to achieve and maintain low resistance joint: Copper earthing systems are found on every equipment in substations and must be regularly controlled, as well as the electrical connection between components that must remain at the same potential.

Customer: RTE (Network Electricity Transportation France) Goal: Bonding / Earthing in substations Equipment: OM10 and OM16 Application: In substations, bonding and earthing connections must be regularly  measured to ensure safety, i.e. to achieve and maintain low resistance joint: Copper earthing systems are found on every equipment in substations and  must be regularly controlled, as well as the electrical connection between  components that must remain at the same potential.

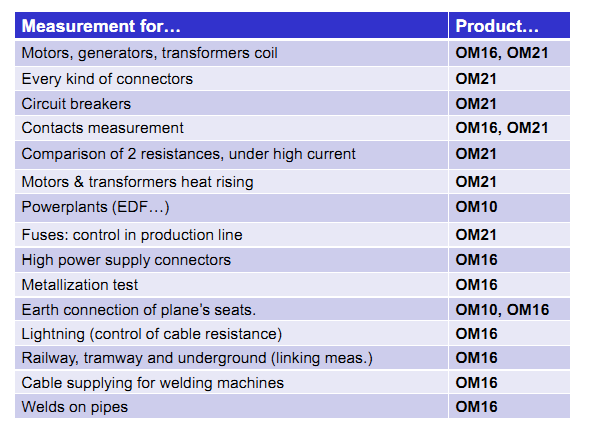

 Which AOIP Micro-Ohmmeter (OM) for Which application?

Which AOIP Micro-Ohmmeter (OM) for Which application?
