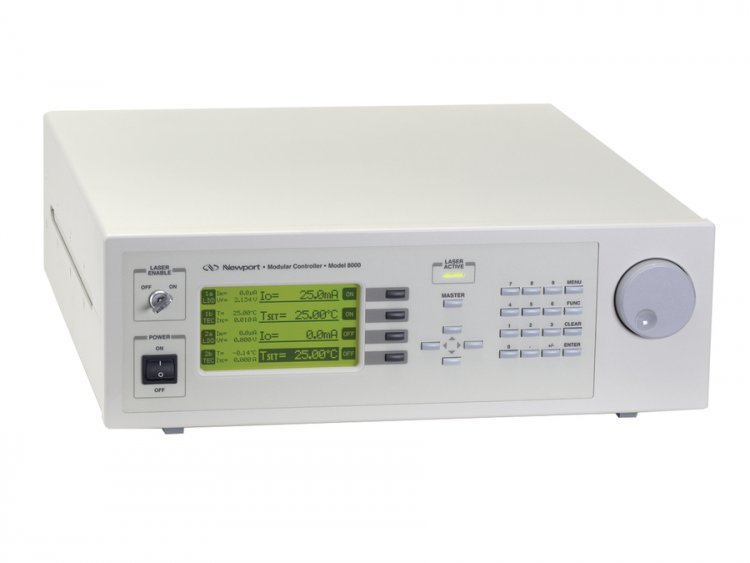

The Model 8000 Modular Multi-channel Diode Laser Controller mainframe automatically detects which module is located in each of the four fully isolated bays available, and displays the entire system configuration on the large LCD display. All you do is follow on-screen instructions to configure and operate the modular system. Advanced 16-bit technology, coupled with careful designs that isolate digital and analog signals, ensure precision control and measurement capabilities. GPIB/IEEE-488.2 and RS-232 interfaces are included with the Model 8000 mainframe for complete remote control and data collection. LabVIEW drivers are supplied with every Model 8000 Modular Controller.
Model 8000
Instrument Type Modular controller
Display Backlighting Green LED
Display Controls Brightness, contrast (contrast optimizes viewing angle) and invert screen
Display Type LCD graphics display, 128 H x 240 W pixels
Power Requirements 90 – 132 V (max. 5 A), 198 – 250 V (max. 2.5 A), 50 – 60 Hz
Computer Interface GPIB, RS-232
Mainframe Weight 31.5 lb (14.3 kg)
