Key Facts
- Digital and analog video and audio output
- HDTV and SDTV formats up to 1080p, PC formats up to WUXGA
- Reference source for moving sequences
- User-selectable variation of interface parameters and signal amplitude
- MPEG-2 transport stream recording and playback
Brief Description

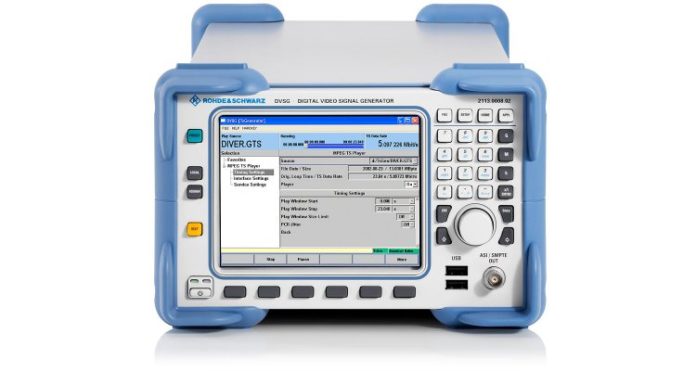

The R&S®DVSG digital video signal generator supports the development and quality assurance of latest-generation TV sets and projectors. It is a costefficient, one-box solution that generates the audio and video signals required for these tasks.
The R&S®DVSG-K10 AV signal generator option makes it possible to test displays with up to 12-bit color depth. The AV signal generator outputs uncompressed video content with a maximum resolution of 1080p and PC resolutions of up to 1920 × 1200 (WUXGA). In addition, Multi-Motion test sequences help enhance picture quality by checking motion blur, deinterlacing and film detection, for example. Comprehensive audio functionalities have been added to the AV signal generator to allow the assessment of sound quality.
