Key Facts
- Frequency options from 9 kHz to 3.2 GHz/6 GHz
- Optional baseband generator with realtime coder and arbitrary waveform generator for maximum flexibility
- Optional ARB-only baseband generators as cost-saving alternatives
- Support of 3GPP LTE FDD and TDD, 3GPP FDD/HSPA/HSPA+, GSM/EDGE/EDGE Evolution, TD-SCDMA, WLAN, WiMAX™ and all other important digital standards
- Fully fledged GNSS simulator with GPS, Glonass and Galileo
- RF bandwidth of up to 160 MHz with internal baseband generator
- I/Q modulator with 528 MHz RF bandwidth
- Optimized for high production throughput
- Prepared for aerospace and defense applications
- Low cost of ownership due to simple service concept
Brief Description

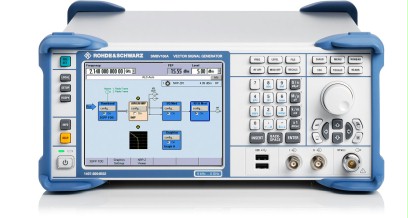

The R&S®SMBV100A offers excellent RF performance along with very high output level and short setting times. At the same time, the R&S®SMBV100A can be equipped with an internal baseband generator to allow generation of a number of digital standards (e.g.LTE, LTE-Advanced, IEEE802.11ac, GNSS). The wide frequency range from 9 kHz to 6 GHz covers all of the important bands for digital modulation.
Specifications
| Frequency | ||
| Range | R&S®SMBV-B103 | |
| CW mode | 9 kHz to 3.2 GHz | |
| I/Q mode | 1 MHz to 3.2 GHz | |
| R&S®SMBV-B106 | ||
| CW mode | 9 kHz to 6 GHz | |
| I/Q mode | 1 MHz to 6 GHz | |
| Setting time | SCPI mode, ALC state ON, CW mode | <3 ms |
| SCPI mode, ALC state ON, I/Q mode | <5 ms | |
| SCPI mode, ALC state Table | <2.5 ms | |
| SCPI mode, ALC state S&H | <7 ms | |
| List mode | <1 ms |
| Level | ||
| Maximum output power | 1 MHz < f = 6 GHz | >+18 dBm (PEP) |
| Absolute level error | 200 kHz < f = 3 GHz | <0.5 dB |
| Additional level error with ALC OFF, S&H | This mode is used with I/Q modulation and pulse modulation. | <0.25 dB |
| Output impedance VSWR in 50 Ω system | 200 kHz < f = 6 GHz | <1.8 |
| Setting time | SCPI mode, ALC state ON, CW mode | <2.5 ms |
| SCPI mode, ALC state ON, I/Q mode | <5 ms | |
| SCPI mode, ALC state Table | <2.5 ms | |
| SCPI mode, ALC state S&H | <7 ms | |
| List mode | <1 ms | |
| Reverse power | 1 MHz < f = 1 GHz | 50 W |
| 1 GHz < f = 2 GHz | 25 W | |
| 2 GHz < f = 6 GHz | 10 W |
| Spectral purity | ||
| Harmonics | f > 1 MHz; CW, level = 8 dBm | <–30 dBc |
| Nonharmonics | CW, level > –10 dBm, >10 kHz carrier offset, f = 1500 MHz | <–70 dBc (<–84 dBc typ.) |
| SSB phase noise | 20 kHz carrier offset, 1 Hz measurement bandwidth, CW | |
| f = 100 MHz | <–141 dBc (–147 dBc typ.) |
|
| f = 1 GHz | <–122 dBc (–127 dBc typ.) |
|
| f = 6 GHz | <–106 dBc (–112 dBc typ.) |
|
| Wideband noise | attenuator mode AUTO for level > 5 dBm, >10 MHz carrier offset, 1 Hz measurement bandwidth, CW | <–142 dBc |
| Supported analog modulation modes | ||
| Amplitude modulation | standard | |
| Frequency/phase modulation | standard | |
| Maximum FM deviation | f > 3 GHz | 16 MHz |
| Maximum φM | f > 3 GHz | 160 rad |
| Pulse modulation | optional, with R&S®SMBV-K22 |
|
| On/off ratio | >80 dB | |
| Rise/fall time | 10 % to 90 % of RF amplitude | <20 ns, 4 ns (typ.) |
| Minimum pulse width | using the optional R&S®SMBV-K23 pulse generator |
10 ns |
| I/Q modulation | ||
| Supported systems (with additional options) |
R&S®SMBV-B10 baseband generator required | GSM/EDGE/EDGE evolution, 3GPP FDD incl. HSPA/HSPA+,TD-SCDMA, CDMA2000®, 1×EV-DO, EUTRA/ LTE, WiMAX IEEE 802.16-2004, Cor1-2005, 802.16e-2005 and 802.16Rev2/D3 , WLAN IEEE 802.11a/b/g/n/ac, NFC A/B/F, Bluetooth®, GPS, Glonass, Galileo, HD Radio™3), XM Radio, Sirius Radio, FM Stereo / RDS, DAB / T-DMB, DVB-H/DVB-T, Tetra Release 2, multicarrier CW |
| Realtime custom digital modulation | R&S®SMBV-B10 baseband generator required | ASK, FSK, BPSK, QPSK, QPSK 45° offset, OQPSK, p/4-QPSK, p/2-DBPSK, p/4-DQPSK, p/8-D8PSK, 8PSK, 8PSK EDGE, 16QAM, 32QAM, 64QAM, 256QAM, 1024QAM |
| I/Q modulator bandwidth | internal | 60 MHz, 120 MHz or 160 MHz, depending on baseband option |
| external | >500 MHz | |
| Maximum waveform length | 32 Msample | |
| with R&S®SMBV-K511 option | 256 Msample | |
| with R&S®SMBV-K512 option | 1 Gsample | |
| DAC resolution | ||
| ACLR | WCDMA 3GPP FDD, TM 1/64 | 69 dBc (typ.) |
| EVM | WCDMA 3GPP FDD, TM 1/64 | 0.4 % (meas.) |
| WLAN IEEE 802.11 ac, 160 MHz | 0.44 % (meas.) | |
| EUTRA/LTE | 0.4 % (meas.) |
| Connectivity | |
| Remote control | IEC/IEEE, Ethernet (LAN), USB |
| Peripherals | USB 2.0 |
2) PEP = peak envelope power.
3) HD RadioTM is a proprietary trademark of iBiquity Digital Corp.
